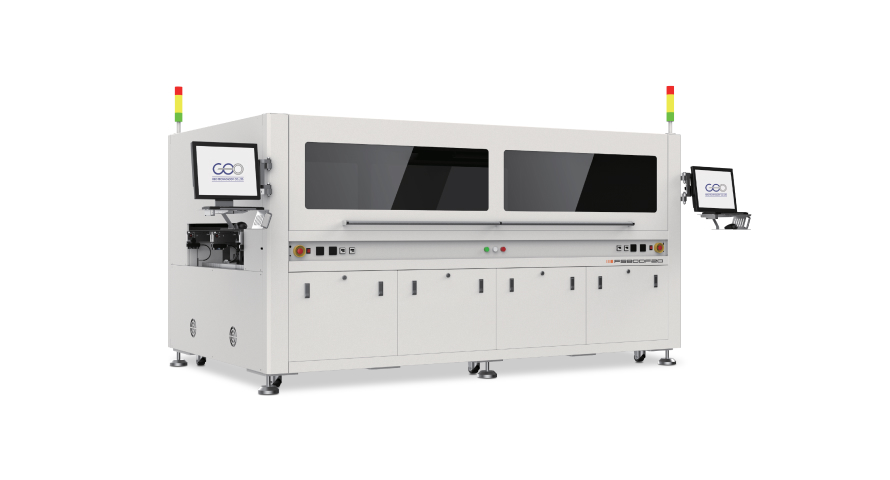

FS800 Series fully automatic dispensing equipment
HOME캐비넷형 비전 디스펜서 시스템
FS Series
FS800 Series fully automatic dispensing equipment
The FS800 series automatic dispensing equipment is a high-speed, high-precision, and high-efficiency inline spray coating system and is developed based on the renewable energy FPC industry. It can handle FPC tasks of various sizes and process substrates up to 2,100mm in length in a single process.
The dual-head, dual-valve, and dual-rail configuration reduces cycle time (Time per Cycle), and the tilt rotation module meets the dispensing process requirements of various working environments.
FS Series
FS800 Series fully automatic dispensing equipment
The FS800 series automatic dispensing equipment is a high-speed, high-precision, and high-efficiency inline spray coating system and is developed based on the renewable energy FPC industry. It can handle FPC tasks of various sizes and process substrates up to 2,100mm in length in a single process.
The dual-head, dual-valve, and dual-rail configuration reduces cycle time (Time per Cycle), and the tilt rotation module meets the dispensing process requirements of various working environments.
High quality, high-speed precision coating
Positioning based on optical scales and linear electromagnetic drive ensures the equipment’s precision and stability.
High quality, high-speed precision coating
Positioning based on optical scales and linear electromagnetic drive ensures the equipment’s precision and stability.
Improving efficiency
- The dual-track system reduces substrate flow transition time.
- Dual-head and dual-valve support enables simultaneous or asynchronous coating.
- Support for large-capacity adhesive storage containers helps to reduce replacement frequency and improve production efficiency.
Improving efficiency
- The dual-track system reduces substrate flow transition time.
- Dual-head and dual-valve support enables simultaneous or asynchronous coating.
- Support for large-capacity adhesive storage containers helps to reduce replacement frequency and improve production efficiency.
Equipment structure convenience
- Front and rear double swing doors (European-style opening) facilitate operator observation, adjustment, and substrate loading/unloading.
- Dual display module visualizes alarms and warning conditions in real-time, enhancing operation and monitoring efficiency.
Equipment structure convenience
- Front and rear double swing doors (European-style opening) facilitate operator observation, adjustment, and substrate loading/unloading.
- Dual display module visualizes alarms and warning conditions in real-time, enhancing operation and monitoring efficiency.
High compatibility
Adjustable rail width ensures compatibility with products of various specifications and line integration.
High compatibility
Adjustable rail width ensures compatibility with products of various specifications and line integration.
SPECIFICATIONS
| Model Name | FS800F12 | FS800F15 | FS800F20 |
|---|---|---|---|
| Structure | Standalone equipment + dual upward-opening doors. Left/right individual XYZ coating units + dual track | Standalone equipment + dual upward-opening doors. Dual XYZ execution module + dual track | Standalone equipment + dual upward-opening doors. Dual XYZ execution module + dual track |
| Driving method (X-Axis / Y-Axis) | X/Y Axis: Linear motor + optical scale. Z Axis: Synchronous belt + ball screw module | X/Y Axis: Linear motor + optical scale. Z Axis: Synchronous belt + ball screw module | X/Y Axis: Linear motor + optical scale. Z Axis: Synchronous belt + ball screw module |
| Number of Axes | Total 6 axes (2 sets of XYZ axes) | Total 6 axes (dual XYZ execution unit) | Total 6 axes (dual XYZ execution unit) |
| External dimensions (W×D×H) | 2100 × 1800 × 1600mm | 2400 × 1800 × 1600mm | 3000 × 1800 × 1600mm |
| Coating range (W×D) | 1200 × 800mm | 1500 × 800mm | 2100 × 800mm |
| Maximum Speed (X/Y Axis / Z Axis) | X/Y: 1000mm/s Z: 500mm/s | X/Y: 1000mm/s Z: 500mm/s | X/Y: 1000mm/s Z: 500mm/s |
| Maximum acceleration (X/Y Axis / Z Axis) | X/Y: 1g Z: 0.5g | X/Y: 1g Z: 0.5g | X/Y: 1g Z: 0.5g |
| Repeat positioning accuracy (3 Sigma) | X/Y: ±0.015mm Z: ±0.005mm | X/Y: ±0.015mm Z: ±0.005mm | X/Y: ±0.015mm Z: ±0.005mm |
| Positioning accuracy (3 Sigma) | X/Y: ±0.03mm Z: ±0.01mm | X/Y: ±0.03mm Z: ±0.01mm | X/Y: ±0.03mm Z: ±0.01mm |
| Track width adjustment method | Automatic adjustment | Automatic adjustment (using 3 driving motors) | Automatic adjustment (using 3 driving motors) |
| Track width adjustment range | 150~400mm (based on single track) | 150~400mm (based on single track) | 150~400mm (based on single track)) |
| Z-Axis load (kg) | 5kg | 5kg | 5kg |
| Conveyor belt load (kg) | 5kg | 10kg | 10kg |
| Maximum substrate thickness (mm) | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Maximum allowable height above substrate | 25mm | 25mm | 25mm |
| Maximum allowable height below substrate | 25mm | 25mm | 25mm |
| Transfer Track | Belt, chain, double chain options available (customizable) | Belt, chain, double chain options available (customizable) | Belt, chain, double chain options available (customizable) |
| Camera resolution (Optional) | 1.3 million pixel monochrome camera (optional) | 1.3 million pixel monochrome camera (optional) | 1.3 million pixel monochrome camera (optional) |
| Light Source | RGB color light source (optional) | RGB color light source (optional) | RGB color light source (optional) |
| Operating system | Windows 10 64-bit system | Windows 10 64-bit system | Windows 10 64-bit system |
| Input Voltage | 220V AC 50±Hz | 220V AC 50±Hz | 220V AC 50±Hz |
